JT1409 Wind speed sensor
Model: JT1409

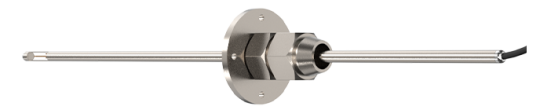

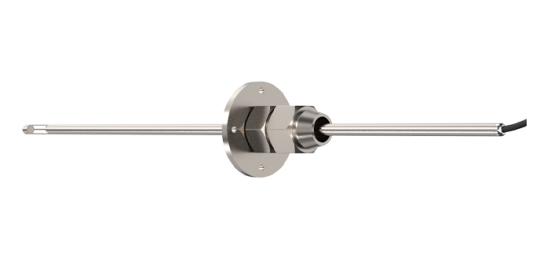

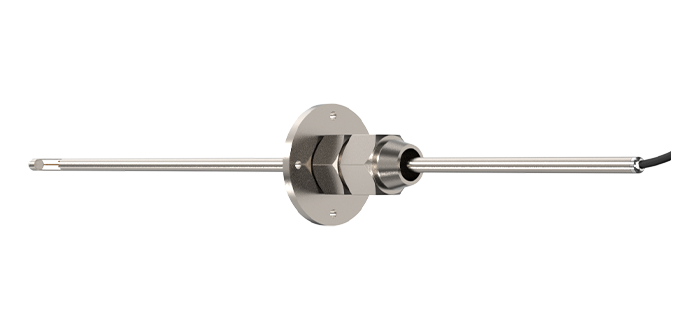

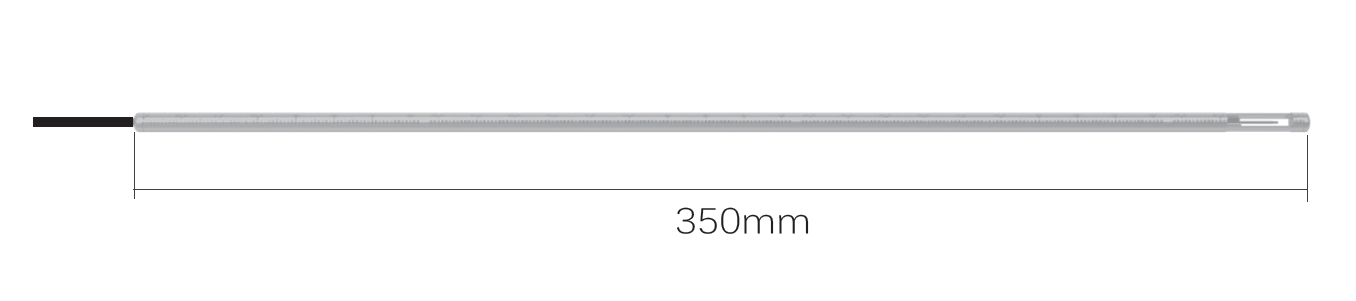

JT1409 wind speed sensor, capable of simultaneously measuring wind speed and temperature, can be installed and fixed on ventilation ducts, with a length scale on the sensor rod,
There are two types of sensor probe forms: fixed installation probe and wired probe, suitable for measuring wind speed in building ventilation ducts or ventilation shafts.
Parameter name |
Technical indicators |
illustrate |
Structural form |
Split structure, omnidirectional testing |
|
Wind speed range |
0-20m/s (0-30m/s can be customized) |
|
Wind speed accuracy |
± (0.1+2% reading) or 2% range, whichever is greater |
|
Wind speed resolution |
0.01m/s |
|
Response time |
0.2s |
(t63, 1m/s wind speed, 25°C) |
Adaptation test module |
Optional JT6070, JT6071 |
|
Supply voltage |
Refer to the selected test module |
|
Air temperature range |
-20-60°C |
|
Air temperature accuracy |
±1°C (<1m/s); ±0.5°C (>1m/s) |
|
Air temperature resolution |
0.1℃ |
|
Usage Environment |
Probe -25—80°C; 0—90%RH |
In non-condensing state |
Temperature compensation |
-25—80°C |
|
Interface |
Bare wire connector |
|
Structural Materials |
Stainless steel |
|
Protection level |
IP54 |
|
Storage temperature |
-30—80°C |

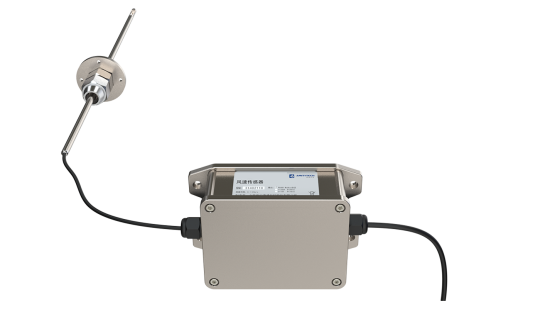

Test Module/Transmitter Specifications |
||
model |
JT6070 |
JT6071 |
Output |
RS485 (optional 0-10V; 4-20mA) |
|
show |
none |
OLED Display |
Supply voltage |
DC9V-36V |
|
Rated power consumption |
<0.8W |
<1W |
Usage Environment |
-25—70°C; 0—100%RH |
|
Interface |
Bare wire connector |
|
Material |
ABS |
Aluminum Alloy |
Protection level |
IP65 |
|
Storage temperature |
-30—80°C |
